Tang Band W8-2096B 8" Underhung Midbass Driver 4 Ohm
Tang Band W8-2096B 8" Underhung Midbass Driver 4 Ohm
Regular price
$149.99 USD
Regular price
$289.99 USD
Sale price
$149.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description :
- Huge ferrite magnet, and underhung motor design.
- Short ring VC = 49.5mm.
- Very low 2nd and 3rd distortion (low THD).
- Long throw, high power loading, X-max = 8.5mm.
- Coated paper cone with wide range temperature of foam rubber surround.

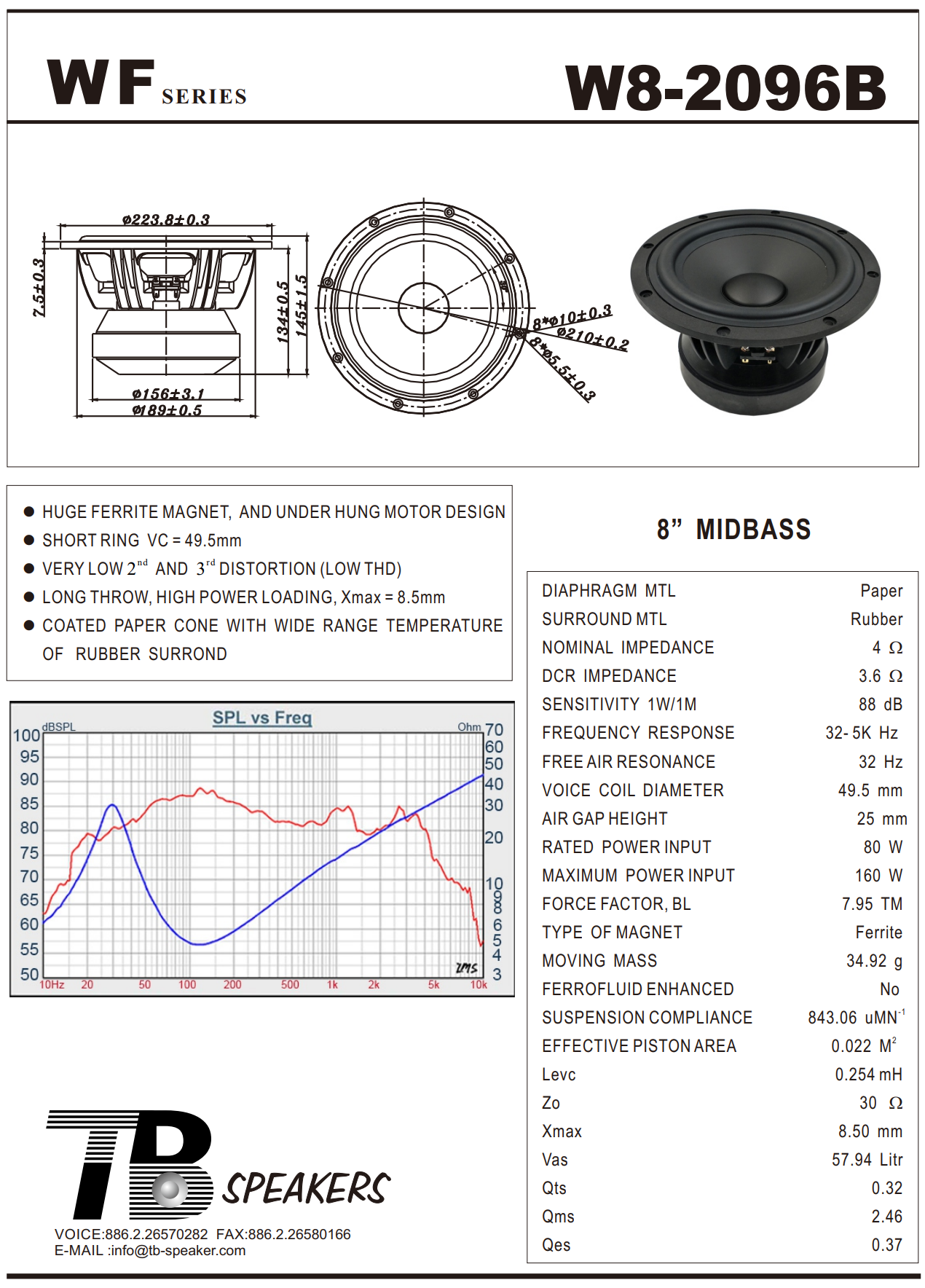

Technical Parameters
- SIZE：
- 8"
- CATEGORY：
- Woofer
- DIAPHRAGM MTL：
- Paper
- SURROUND MTL：
- Rubber
- NOMINAL IMPEDANCE：
- 4 Ω
- DCR IMPEDANCE：
- 3.6 Ω
- SENSITIVITY 1W/1m：
- 88 dB
- FREQUENCY RESPONSE：
- 32-5K Hz
- FREE AIR RESONANCE：
- 32 Hz
- VOICE COIL DIAMETER：
- 49.5 mm
- AIR GAP HEIGHT：
- 25 mm
- RATED POWER INPUT：
- 80 W
- MAXIMUM POWER INPUT：
- 160 W
- FORCE FACTOR, BL：
- 7.95 TM
- TYPE OF MAGNET：
- Ferrite
- MOVING MASS：
- 34.92 g
- FERROFLUID ENHANCED：
- NO
- SUSPENSION COMPLIANCE：
- 843.06 uMN¯¹
- EFFECTIVE PISTON AREA：
- 0.022 M²
- Levc：
- 0.254 mH
- Zo：
- 30 Ω
- X-max：
- 8.5 mm
- Vas：
- 57.94 Litr
- Qts：
- 0.32
- Qms：
- 2.46
- Qes：
- 0.37
