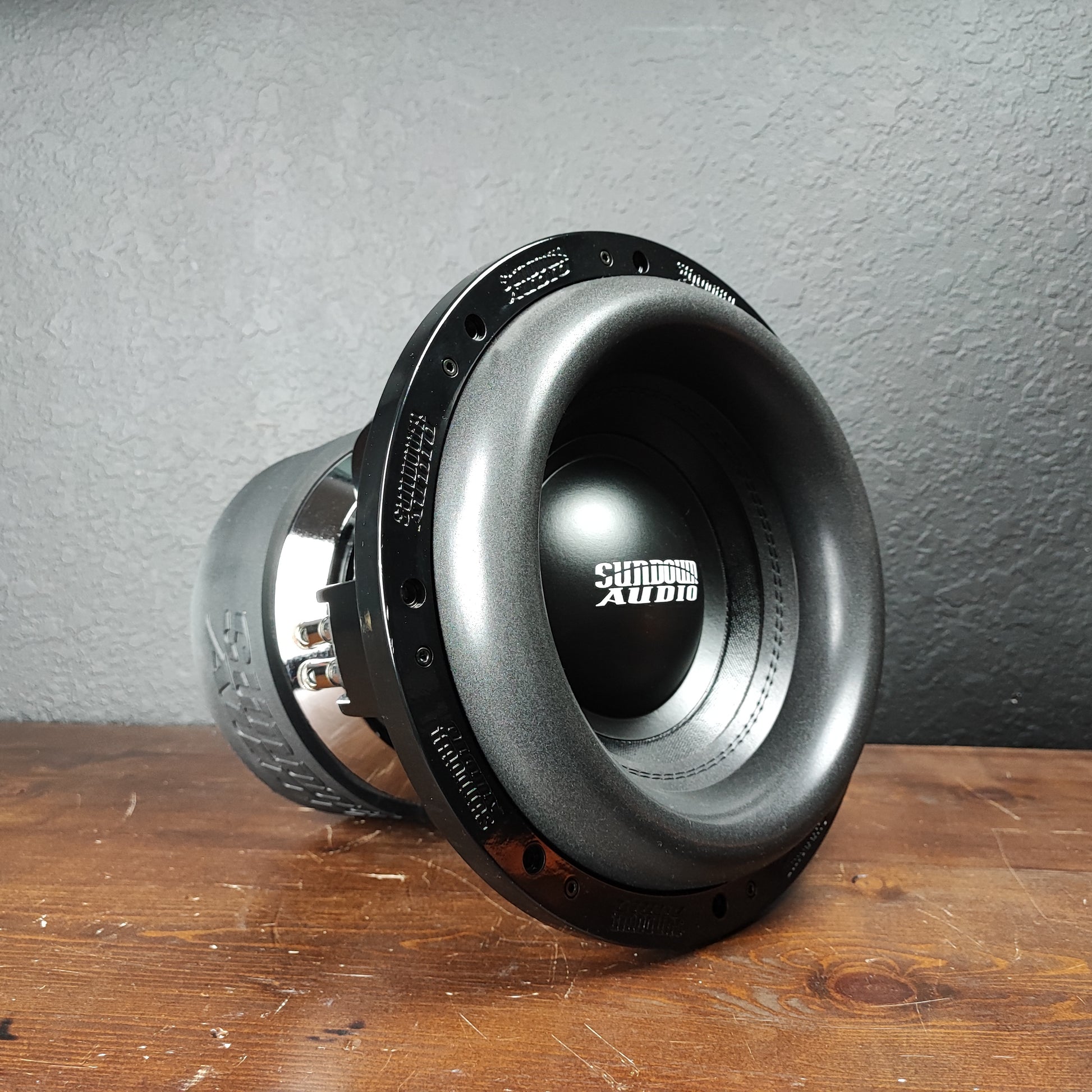

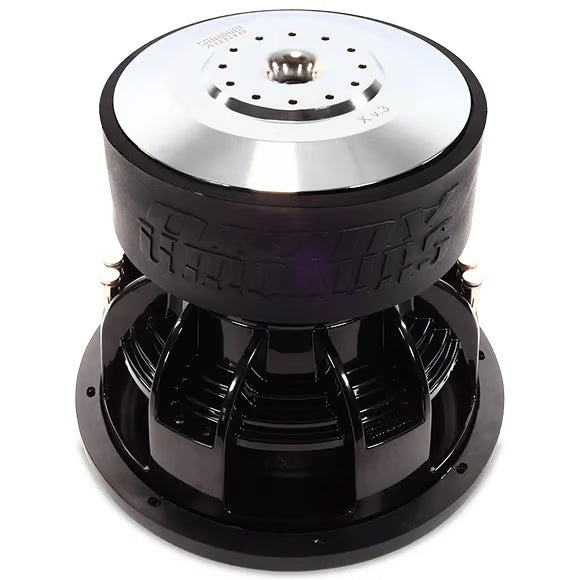

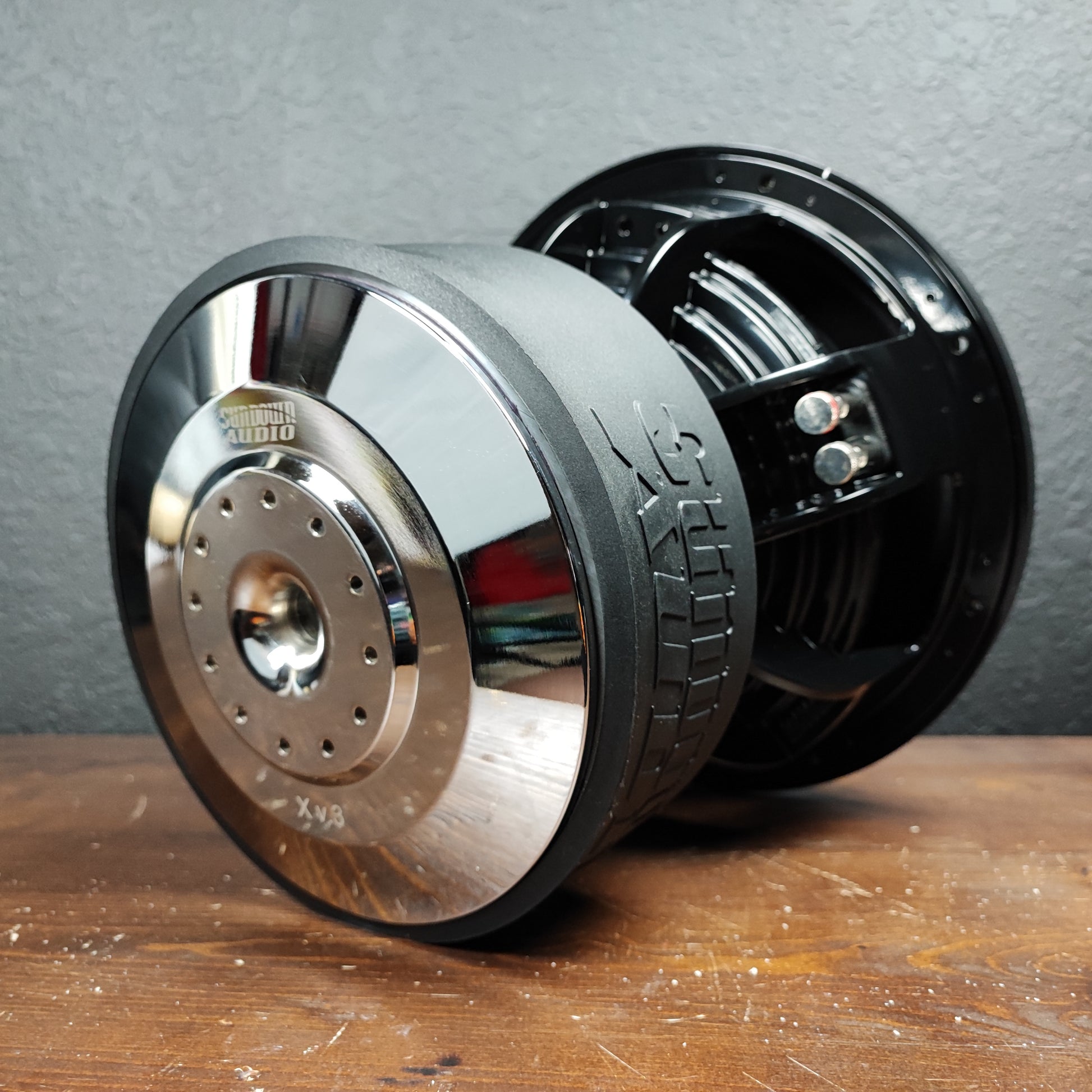

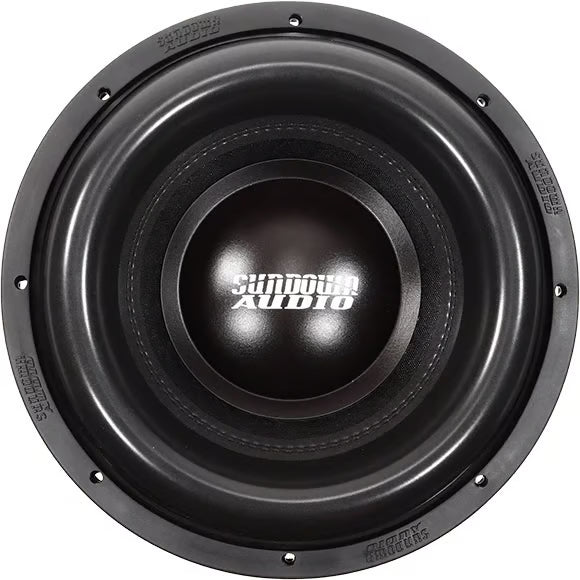

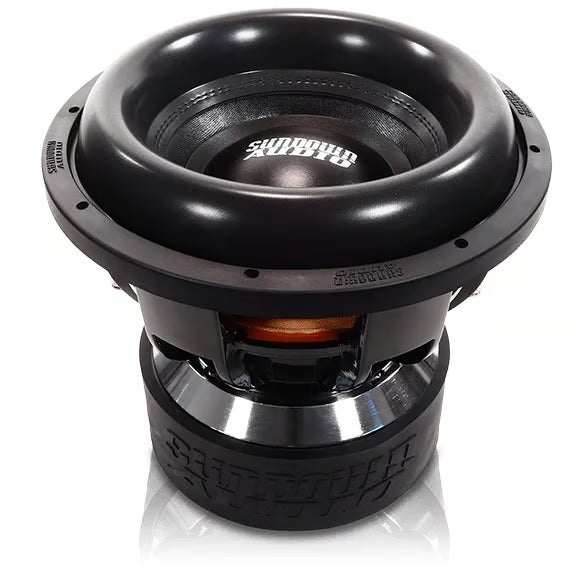

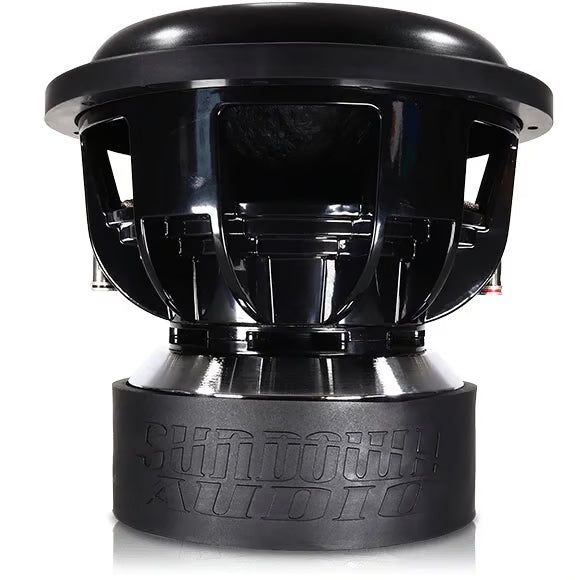

(Pre-Owned) Sundown Audio X Series 12 v.3 Subwoofer | Dual 1 Ohm
(Pre-Owned) Sundown Audio X Series 12 v.3 Subwoofer | Dual 1 Ohm
Couldn't load pickup availability

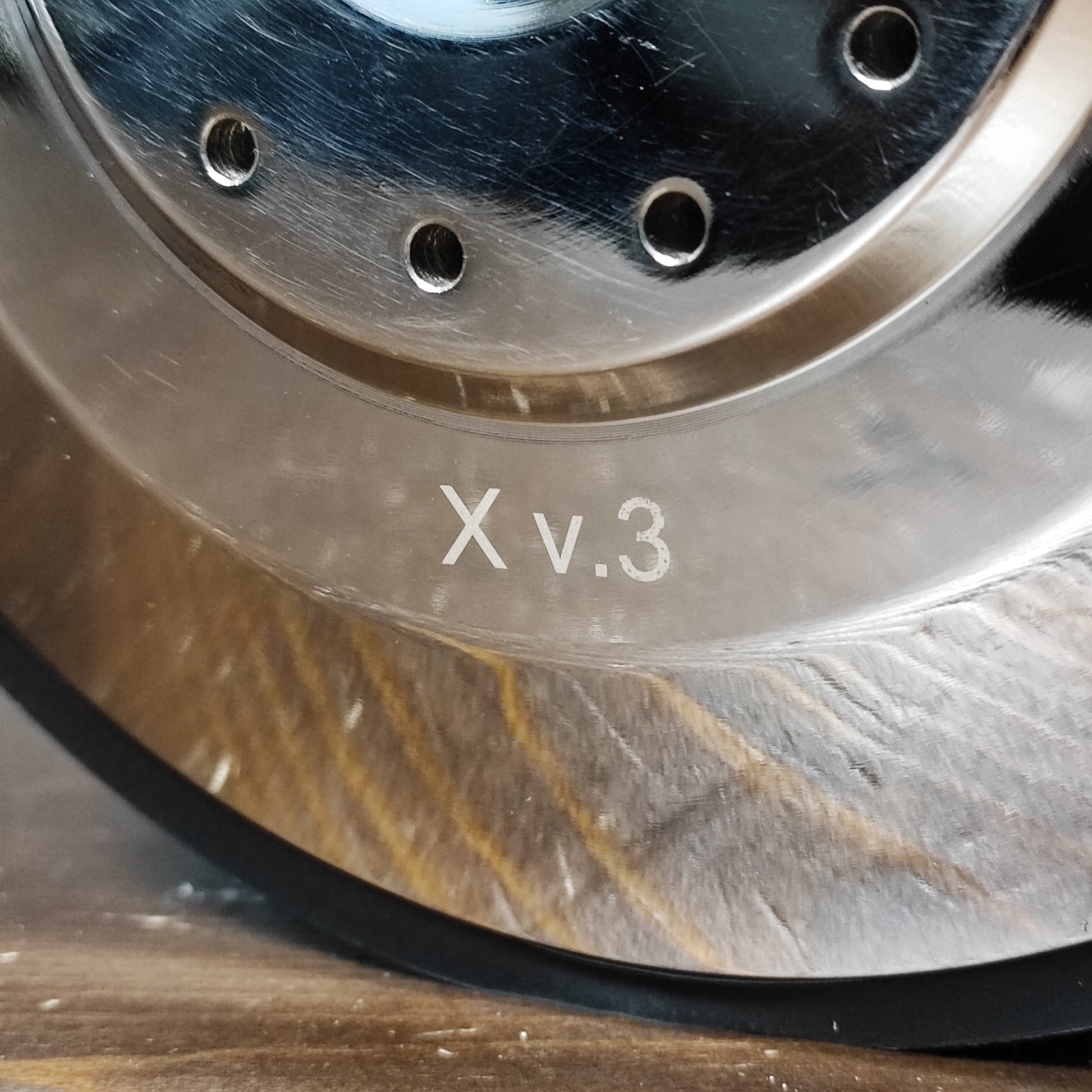

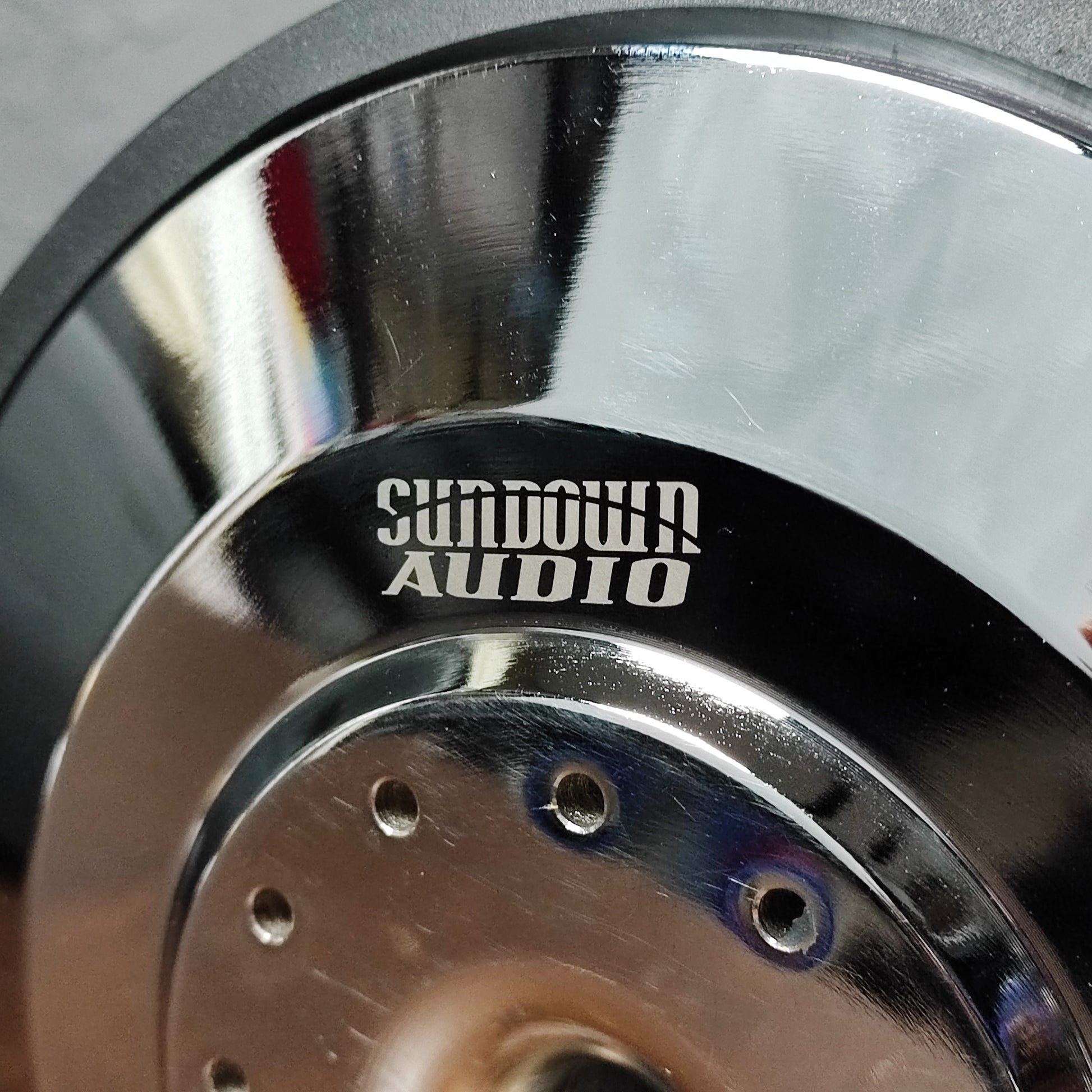

Sundown Audio X V.3 12" D1
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

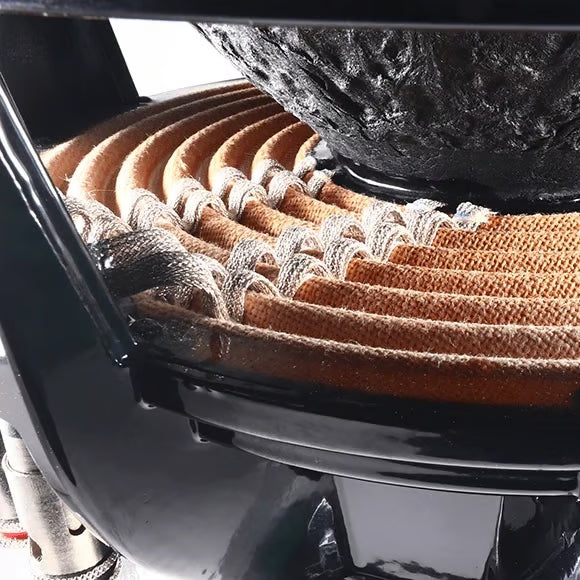

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Product Details:
-
- 2500 Watts RMS / 5000 Watts Peak
- Dual 1 or 2 ohm voice coil
- Made for extremely deep bass
- Triple-stacked magnet
- 3” voice coil
- Hyper-extended pole
- Built to order
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.
The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
T/S SPECS X V.3 12″ D1 X V.3 12″ D2 RE (Ohms) 1.4 3.2 FS (Hz) 37.098 37.235 VAS (L) 12.986 17.077 Qes 0.486 0.543 Qms 2.597 2.779 Qts 0.409 0.454 Le (mH) BL (NA) 15.943 19.857 Mms (Grams) 378.626 285.817 Cms (uM/N) 48.611 63.922 Sens (dB @ 1w/1m) 83.2dB 84.0dB
Xmax 30mm 30mm
Enclosure Specifications
X v.3 12 Sealed Enclosure N/A Ported Enclosure 2.5 cu ft Recommended Tuning 32hz Recommended Port Area 40 sq in Displacement 0.2 cu ft Depth 10.4" Outside Diam. 12.68" Cutout 11.09" - 2500 Watts RMS / 5000 Watts Peak
